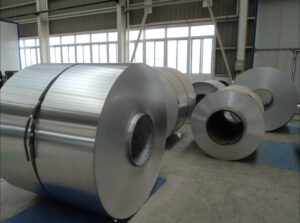

Aluminum coil 1100
What’s the information of aluminum coil 1100?
Alloy Number: 1100
Temper: O, H12, H14, H16, H18, H24
Thickness: 0.2mm – 6.35mm
Width: 300mm-2600mm
Inner Diameter: 505mm, 508mm, 305mm, 76mm; Maximum OD: 2000MM,
Standard width: 1000mm, 1200mm, 1220mm, 1250mm, 1500mm,
Thickness tolerance: +/-0.02mm, Width tolerance: -0 / +2mm;
Maximum weight per coil: 7 Tons,
The purity can reach more than 99.00%.
The 1100 is one of the alloy number with the most aluminum content among all series. The purity can reach more than 99.00%. Since it does not contain other metal elements, it is a single production process and relatively inexpensive. This make it be the most commonly used series in conventional industry. It has conductive, good thermal conductivity, which is very good and only after silver, copper and gold. Low density: The density of pure aluminum is 2.71KG/M3. about 35% of iron.
Aluminum Coil 1100 Properties Chemistry Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1100 0.95 0.05-0.2 0.05 - - - 0.1 - 99
Aluminum Coil 1100 H14 application:
-Chemical equipment, conductive materials, chemical equipment, instruments, highway road signs, motor vehicle license plates, cookware, building decoration materials, hardware and cooking utensils, machine part;
Aluminum Coil 1100 H16 for Roofing:
Aluminum coil have very good plasticity, good welding performance and corrosion resistance. So it is wildly used for producing roofing. Especially after the PE or PVDF color coated, the roofing can be used over 20 years and wildly used for building, construction, decoration.
Aluminum Coil 1100 Size: 1.2mm x 2590.8mm (102’’)
Aluminum Coil 1100 Price per sheet / per kg
The aluminum sheet price changes everyday and it depends on the market.
Here is our aluminum sheet price per KGS for you:
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1060 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 99.6
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 99.5
1100 0.95 0.05-0.2 0.05 - - - 0.1 - 99
1200 1 0.05 0.05 - - - 0.1 0.05 99
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remainder

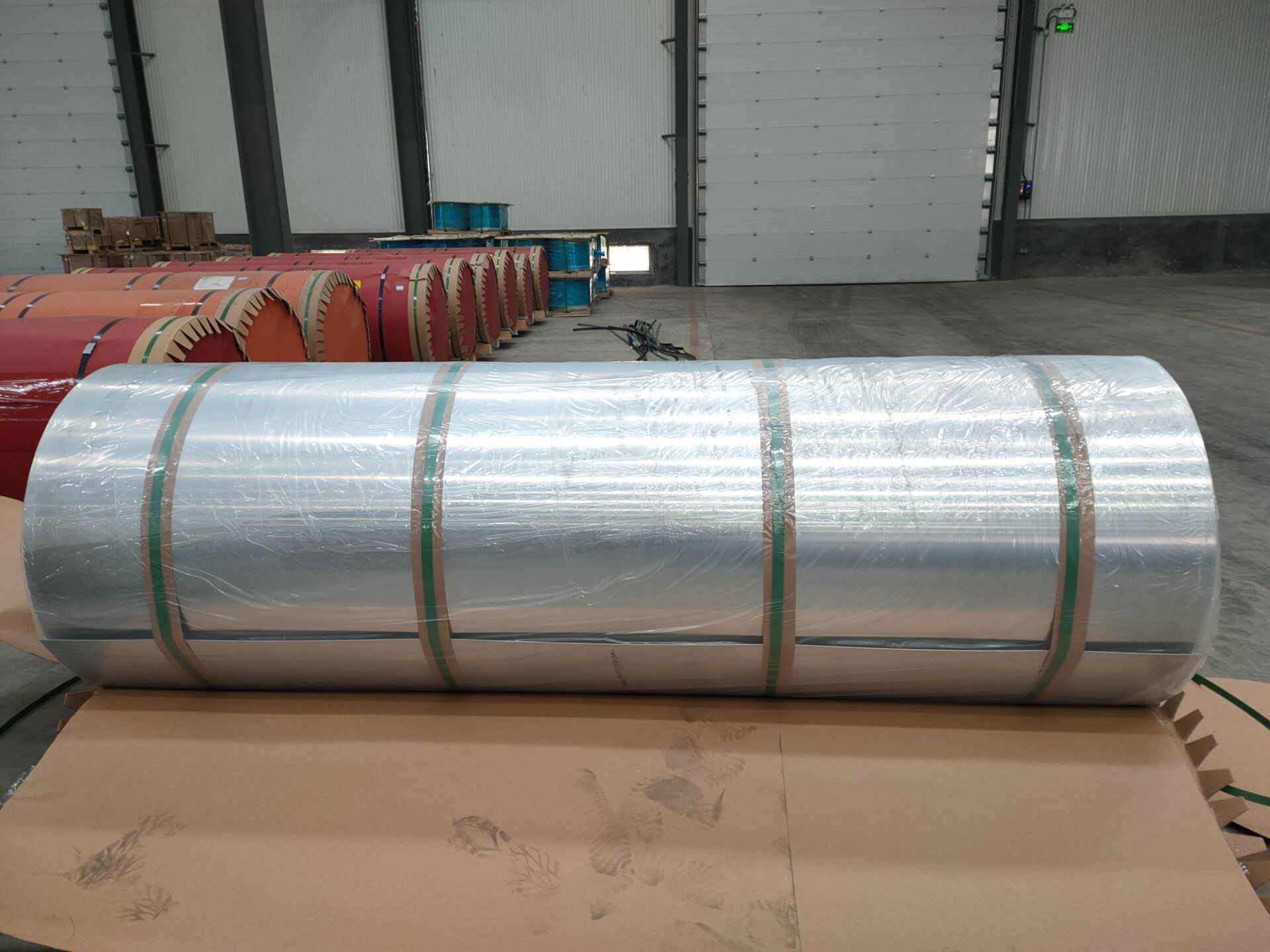

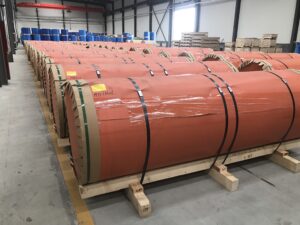

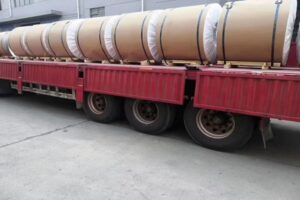

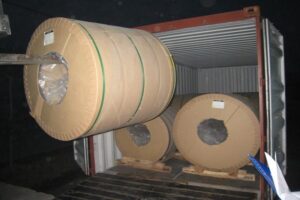

Aluminum Coil Packing and Loading:
Seaworthy packages to be protect from humidity.
Package to Avoid All Moisture Contamination
Heat#’s must be recorded on all bundles
Do not mix heats within bundles
Bundle individual sizes separately
2-3 mils medium tack clear or clear blue PVC one side.
Critical surface quality:No chatter, no Pitt marks, no weld, no stains accepted;
